Products List:
  XPC-1901W
  MJP19













XPC-1901W 19 inch WideScreen 16:10 LCD Monitor Famous Japanese Graphic Tablet brand "P-Active" has great success on Pen Tablet market. And now with these great graphic tablet technologies we are announcing the perfect tool for graphic creation. The XPC-1901W, 19 inch with 1024 high pressure sensitivity level, with flexible stand display angle from 16 degrees to 75 degrees. XP-PEN is a new standard in graphic tablets, top quality tablet at an affordable price. These tablets are ideal for professionals and students in the digital art industries. Handwriting recognition on your MAC or PC allows for digital signatures on documents and personalized emails.
The Graphic Tablet is a computer input device that allows one to hand-draw images and graphics, similar to the way one draws images with a pencil and paper. These tablets may also be used to capture data or handwritten signatures. It can also be used to trace an image from a piece of paper which is taped or otherwise secured to the surface. Capturing data in this way, either by tracing or entering the corners of linear poly-lines or shapes is called digitizing. Graphic Tablet consists of a flat surface upon which the user may "draw" or trace an image using an attached stylus, a pen-like drawing apparatus. It is also called pen pad or digitizer The image generally does not appear on the tablet itself but, rather, is displayed on the computer monitor. Some tablets, however, come as a functioning secondary computer screen that you can interact with images directly by using the stylus.

Fully support Windows 7 applications. Don’t you want to try the best build-in application of Windows 7 instead of use traditional mouse? XP-Pen brings you the best experience of news hand writing technology and drawing pleasure.  Or if you are not using Windows 7 system, don’t you worry about missing the fun and pleasure. XP-P850 buddle with extreme software “Info-XPPEN” which is very similar to Windows 7 application, you can still annotated on documents, email, and even making notes on image files. Also, for painting pleasure, that you are able to experience artist fun through PIXIA, for all different kind of paint brushes (pen, pencil, water paint brush, crayon brush, and many other more).






Features

Education:

Natural pen feel allows kids to enjoy e-learning easier at School or Home. Do lots of fun things like drawing, writing, sketching, coloring, and editing photos.

Animate / Video Effects:

Assist in editing video, music and animation. Works fast and works great with professional software.

Business:

Great for presentations, seminars, and panel discussions. Write, sketch, circle, or add notes during your presentation to emphasize important points.

Artists:

Great for package design, illustration, advertising, and Web Design. Sketch, color, paint, and edit work with professional software.



Specfication



Size

19"

Display Area

408.24mm(H) x 255.15mm(V) (19.0-inch diagonal)

Interface

USB1.1

Resolution

2000Lpi

Accuracy(*1)

+ - 1.0mm(Linear area)+-2.5mm(Non-Linear  area)

Pressure Levels

1024 Levels

Brightness

300cd/m2

Contrast Ratio

800:1

Report Rate

200 point per sec (max)

Pixel Pitch

0.2835mm(H) x  0.2835mm(V)

Power Consumption

24.7W

Reading Levels

5~20mm

Pen Battery Life

Minimum 3,000 hours of continuous use

Support Color

16.7 M colors

Supply Voltage

DC 5V

Weight ( Control & antenna Board)*

5kg

Viewing Angle

Horizontal:160°/ Vertical:160°

Pixel Arrangement

R.G.B 6 Bit + HiFrc

Safety

Dimension

300mm(H) x450mm(W) x 55mm(D)

Video I/F port

15 pin D-sub, DVI-in

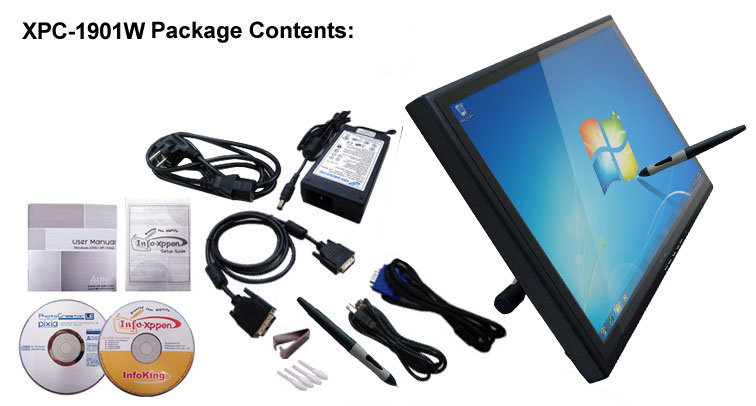

Package Contents

Product Pictures


Shipping Weight

Item

Net weight

Dimension

Q'TY

N.W.

G.W.

MEAS



(KGS)

(CM x CM x CM)

(PCS/CTN)

(KGS)

(KGS)

(Cuft)

XP-4026

0.38

26 x 19 x 4

40

5.6

17.5

3

XP-5560C

0.85

30 x 25 x 6

20

16

17

4

XP-6040

0.25

23 x 23 x 5









XPW-6370

0.83

30 x 25 x 6

20

13

14.2

3.72

XP-8060C

1.5

35 x 30 x 6

10

12

13

2.5

XP-P850

1.5

35 x 30 x 6

10

7

15

2.7

XP-1209B

2.2

46 x 40.5 x 6.5

10

24.7

25.7

5.65

XPC-1901W

6

57 x 50 x 17.5

2

12

13





Certification
