  XPC-19U

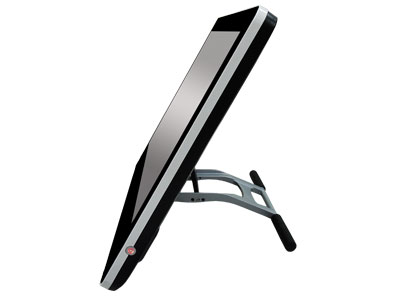

XPC-19U 19 inch WideScreen 16:10 LCD Monitor Famous Japanese Graphic Tablet brand "P-Active" has great success on Pen Tablet market. And now with these great graphic tablet technologies we are announcing the perfect tool for graphic creation. The XPC-19U, 19 inches with 2048 high pressure sensitivity level, with flexible stand display angle from 16 degrees to 75 degrees. XP-PEN is a new standard in graphic tablets, top quality tablet at an affordable price. These tablets are ideal for professionals and students in the digital art industries. Handwriting recognition on your MAC or PC allows for digital signatures on documents and personalized emails.  The Graphic Tablet is a computer input device that allows one to hand-draw images and graphics, similar to the way one draws images with a pencil and paper. These tablets may also be used to capture data or handwritten signatures. It can also be used to trace an image from a piece of paper which is taped or otherwise secured to the surface. Capturing data in this way, either by tracing or entering the corners of linear poly-lines or shapes is called digitizing. Graphic Tablet consists of a flat surface upon which the user may "draw" or trace an image using an attached stylus, a pen-like drawing apparatus. It is also called pen pad or digitizer The image generally does not appear on the tablet itself but, rather, is displayed on the computer monitor. Some tablets, however, come as a functioning secondary computer screen that you can interact with images directly by using the stylus. Fully support Windows 7 applications. Don’t you want to try the best build-in application of Windows 7 instead of use traditional mouse?









Features

Education:

Natural pen feel allows kids to enjoy e-learning easier at School or Home. Do lots of fun things like drawing, writing, sketching, coloring, and editing photos.

Animate / Video Effects:

Assist in editing video, music and animation. Works fast and works great with professional software.

Business:

Great for presentations, seminars, and panel discussions. Write, sketch, circle, or add notes during your presentation to emphasize important points.

Artists:

Great for package design, illustration, advertising, and Web Design. Sketch, color, paint, and edit work with professional software.



Specfication

Model

XPC-19U

LCD Display

Dimensions 454.4mm x 361.8mm x 26mm
Weight  Net 4.0kg, Gross 5.4kg
Display Area 408.24mm(H) x  255.15mm(V)   (19.0-inch diagonal)
Resolution 1440(H) x  900 (V) pixels
Response Time 5ms   (Typ,on/off)
Pixel Pitch 0.2835mm(H) x  0.2835mm(V)
Electrical Interface Dual channel LVDS
Support Color 16.7M
Contrast Ratio  1000:1(Typ)
Backlight Unit LED Backlight
Brightness 250(cd/m2)
Viewing Angle -85° ~ 85° (H), -80° ~ 80° (V) (Typical)
Environmental 0~40°C(32~104°F)
20~80%(non-condensing)
Power consumption Operating: 20Watt
Standby: 1 Watt
Power source AC100-240V Universal(adapter)
I/O Connectors DC Power, D-sub & USB 2-in-1, D-sub Out

TABLET(Digitizer Specification)

Technology Used Electromagnetic
Pen Positioning Accuracy 1.0mm(Linear- area) +/- 2.5mm(Non-Linear area)
Resolution 4000 LPI (default)
Reading Height 5~15 mm
Report Rate 200 points/sec (max)
Pressure Level  2048 Levels
Communication Interface USB Specification 1.1 Compatible Full Speed
Supply Voltage DC 5V
Power Consumption 50mA

Pen

Pen Style Number PEN 51D
Dimensions 158mm(L) x 14.8mm(Dia)
Weight 18g(Not battery)
Pressure Sensitivity 2048 levels
Power Source 1.5V, one  AAA alkaline battery
Work Current 500uA(MAX)
Stand by Current 5uA(MAX)
Battery Life 3,000 housr(min)
Standby Mode Wait Time 5~30min

Accessories

 AC to DC adapter 1 Driver     CD 1
 Power cable        1 User’s manual     1
P51D  pen(Black pin nibs) 1 Software CD 2
Pen  Clip 1
Pen Nibs(Color  Black) 4
 Battery (AAA)                          1
Pen stand                                           1




Package Contents

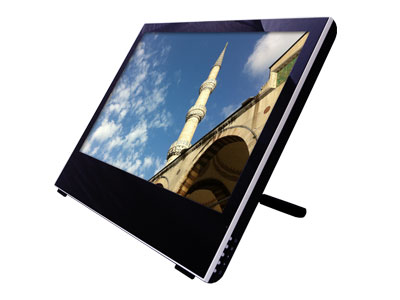

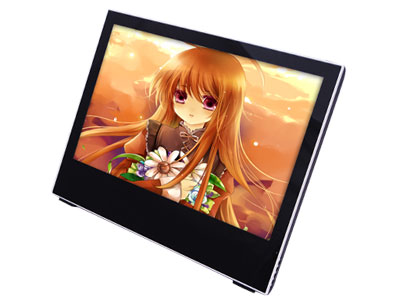

Product Pictures




Shipping Weight

Item

Net weight

Dimension

Q'TY

N.W.

G.W.

MEAS



(KGS)

(CM x CM x CM)

(PCS/CTN)

(KGS)

(KGS)

(Cuft)

XP-4026

0.38

26 x 19 x 4

40

5.6

17.5

3

XP-5560C

0.85

30 x 25 x 6

20

16

17

4

XP-6040

0.25

23 x 23 x 5









XPW-6370

0.83

30 x 25 x 6

20

13

14.2

3.72

XP-8060C

1.5

35 x 30 x 6

10

12

13

2.5

XP-P850

1.5

35 x 30 x 6

10

7

15

2.7

XP-1209B

2.2

46 x 40.5 x 6.5

10

24.7

25.7

5.65

XPC-1901W

6

57 x 50 x 17.5

2

12

13
